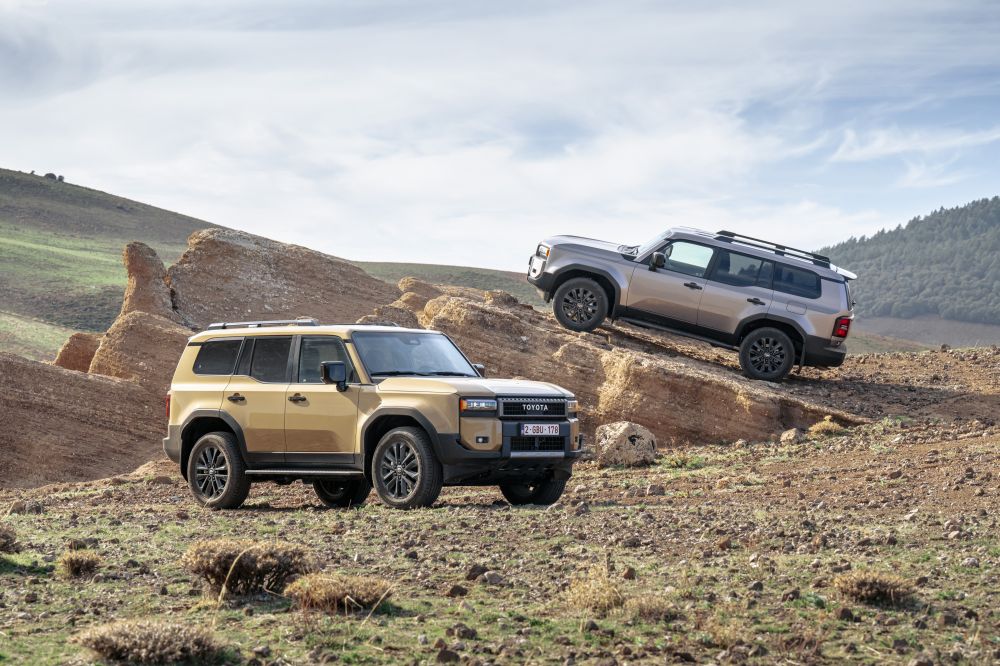

The all-new Toyota Land Cruiser.
16-12-2024 20:57 - CAR NEWS
The design of the new Land Cruiser is a clear expression of the vehicle’s status as a fully fledged off-roader that’s inherently strong and stable.
Its essential reliability is reflected in the shape and composition of parts designed to cope with harsh conditions and be easy to replace if damage occurs. There’s a timelessness, too, in design simplicity that expresses quality and will not look out-of-date, and a sense of professionalism in the form-follows-function design of the kind found in top-quality professional tools.
Brought together, these elements create a fusion of heritage and modernity: this is a Land Cruiser that is rooted in its origins, yet meets the highest contemporary standards.
The classic Land Cruiser silhouette references the definitive lines of the early Land Cruiser models (the 40 and 70 Series Heavy Duty Land Cruisers are clear influences) with a strong horizontal axis, a long bonnet, upright windscreen, a short front overhang and distinctive trapezoidal wheel arches. The proportions are also true to Land Cruiser’s design heritage, with a tight, box-shaped cabin set behind the car’s vertical axis to gain both interior space and comfort. The car’s overall length is 4,925 mm, width 1,980 mm and height 1,935 mm; the wheelbase is 2,850 mm.
The configuration and proportions of the frontal elements create a classic Land Cruiser look. Functional parts are grouped together towards the centre with high-set headlights to help avoid damage in tough driving conditions. The sense of purpose is further emphasised by the restoration of the classic TOYOTA logo front centre and at the rear above the licence plate garnish. Practicality is designed-in with bumper corners that are easy to replace if damaged.
The headlights have a slim, oblong triple-eye arrangement of LEDs while the front fog lights are deeply recessed in the bumper corners, again to help avoid damage. The front and rear corners are chamfered (which also aids manoeuvrability); and the lower door sections have a scraped, concave surfac
Giving the driver the best view ahead and to the side was a design priority. This produced a bonnet shape with raised sides which make it easier to locate the vehicle’s corners, and a lowered centre section that improves the forward view, reducing the blind spot immediately in front of the vehicle. To improve the view to the side, the A pillar is set at a more upright angle, the mirrors are attached to the doors and the belt line has been stepped down – a reference to the classic Toyota BJ70 – by about 30 mm compared to the current model.
The bodywork displays contrasting sharp hard and glossy curved surfaces for a simple, modern look with a sense of tension and high precision. The overall effect is of the Land Cruiser having been carved from a single lump of pure metal. The car’s wide stance, flared front and rear wings and the tight body shape combine to emphasise stable performance.
At the rear, the lights are again tightly grouped in vertically stacked combi-units.
According to model grade, the new Land Cruiser will feature 18 or 20-inch alloy wheels with new designs. A wide range of body accessories will give customers the chance to tailor their vehicle to suit their requirements, including roof rails, side steps and an opening rear hatch.
Its essential reliability is reflected in the shape and composition of parts designed to cope with harsh conditions and be easy to replace if damage occurs. There’s a timelessness, too, in design simplicity that expresses quality and will not look out-of-date, and a sense of professionalism in the form-follows-function design of the kind found in top-quality professional tools.
Brought together, these elements create a fusion of heritage and modernity: this is a Land Cruiser that is rooted in its origins, yet meets the highest contemporary standards.
The classic Land Cruiser silhouette references the definitive lines of the early Land Cruiser models (the 40 and 70 Series Heavy Duty Land Cruisers are clear influences) with a strong horizontal axis, a long bonnet, upright windscreen, a short front overhang and distinctive trapezoidal wheel arches. The proportions are also true to Land Cruiser’s design heritage, with a tight, box-shaped cabin set behind the car’s vertical axis to gain both interior space and comfort. The car’s overall length is 4,925 mm, width 1,980 mm and height 1,935 mm; the wheelbase is 2,850 mm.
The configuration and proportions of the frontal elements create a classic Land Cruiser look. Functional parts are grouped together towards the centre with high-set headlights to help avoid damage in tough driving conditions. The sense of purpose is further emphasised by the restoration of the classic TOYOTA logo front centre and at the rear above the licence plate garnish. Practicality is designed-in with bumper corners that are easy to replace if damaged.
The headlights have a slim, oblong triple-eye arrangement of LEDs while the front fog lights are deeply recessed in the bumper corners, again to help avoid damage. The front and rear corners are chamfered (which also aids manoeuvrability); and the lower door sections have a scraped, concave surfac
Giving the driver the best view ahead and to the side was a design priority. This produced a bonnet shape with raised sides which make it easier to locate the vehicle’s corners, and a lowered centre section that improves the forward view, reducing the blind spot immediately in front of the vehicle. To improve the view to the side, the A pillar is set at a more upright angle, the mirrors are attached to the doors and the belt line has been stepped down – a reference to the classic Toyota BJ70 – by about 30 mm compared to the current model.
The bodywork displays contrasting sharp hard and glossy curved surfaces for a simple, modern look with a sense of tension and high precision. The overall effect is of the Land Cruiser having been carved from a single lump of pure metal. The car’s wide stance, flared front and rear wings and the tight body shape combine to emphasise stable performance.
At the rear, the lights are again tightly grouped in vertically stacked combi-units.
According to model grade, the new Land Cruiser will feature 18 or 20-inch alloy wheels with new designs. A wide range of body accessories will give customers the chance to tailor their vehicle to suit their requirements, including roof rails, side steps and an opening rear hatch.
In Western Europe, the new Land Cruiser is being introduced with a 2.8-litre turbodiesel engine re-engineered for improved driveability and a stronger balance of fuel efficiency and performance.
The 2,755 cc in-line four-cylinder DOHC direct injection multivalve unit produces a maximum 205 DIN hp/151 kW at 3,000 rpm and is matched to a new eight-speed Direct Shift automatic transmission. With maximum torque of 500 Nm generated between 1,600 and 2,800 rpm, it has the muscle to tow loads of up to 3,500 kg.
Official WLTP combined cycle figures for fuel consumption and CO2 emissions are 10.5 – 10.7 l/100 km, depending on grade, and 275-281 g/m respectively.
Development of the new unit made acceleration control a priority, with performance that is faithful to the driver’s intentions, whether on road or off, driving city streets or on the open highway. The intention was that driving feel should be direct, like that experienced with a manual transmission. To help focus their work, the engineering team gathered knowledge from development of the Land Cruiser 300 (Station Wagon model, not available in Europe) and quality, durability and reliability intelligence from the current Land Cruiser. Customer feedback about how the vehicle is used day-to-day was also analysed.
This helped produce advances in acceleration performance and driveability; improvements in noise and vibration levels; and enhanced handling in severe conditions. The powertrain is engineered to provide linear acceleration with a strong initial response, while the lock-up function in the eight-speed automatic transmission suppresses surges in engine revs.
A redesigned and more efficient turbocharger is key to the enhanced torque response, with the introduction of impeller with compact blades and a reduction in the unit’s diameter, A new belt layout makes space for the new electric power steering system (see below) and the adoption of a higher output (200A) alternator to ably support customer auxiliary power requirements.
Measures to address environmental performance include an increase in the efficiency of the SCR catalyst and an enlarged, 17-litre urea tank.
The 2,755 cc in-line four-cylinder DOHC direct injection multivalve unit produces a maximum 205 DIN hp/151 kW at 3,000 rpm and is matched to a new eight-speed Direct Shift automatic transmission. With maximum torque of 500 Nm generated between 1,600 and 2,800 rpm, it has the muscle to tow loads of up to 3,500 kg.
Official WLTP combined cycle figures for fuel consumption and CO2 emissions are 10.5 – 10.7 l/100 km, depending on grade, and 275-281 g/m respectively.
Development of the new unit made acceleration control a priority, with performance that is faithful to the driver’s intentions, whether on road or off, driving city streets or on the open highway. The intention was that driving feel should be direct, like that experienced with a manual transmission. To help focus their work, the engineering team gathered knowledge from development of the Land Cruiser 300 (Station Wagon model, not available in Europe) and quality, durability and reliability intelligence from the current Land Cruiser. Customer feedback about how the vehicle is used day-to-day was also analysed.
This helped produce advances in acceleration performance and driveability; improvements in noise and vibration levels; and enhanced handling in severe conditions. The powertrain is engineered to provide linear acceleration with a strong initial response, while the lock-up function in the eight-speed automatic transmission suppresses surges in engine revs.
A redesigned and more efficient turbocharger is key to the enhanced torque response, with the introduction of impeller with compact blades and a reduction in the unit’s diameter, A new belt layout makes space for the new electric power steering system (see below) and the adoption of a higher output (200A) alternator to ably support customer auxiliary power requirements.
Measures to address environmental performance include an increase in the efficiency of the SCR catalyst and an enlarged, 17-litre urea tank.
The powertrain features a new eight-speed automatic transmission designed to enhance driving performance and fuel economy and offering quiet performance. With closer gear ratios, a new, compact torque converter and optimised components, the transmission delivers precise lock-up control, rhythmic shifting and a smooth acceleration feel.
The torque converter features a multi-plate lock-up clutch with an expanded range, contributing to the direct drive feel and overall fuel economy. Lock-up control can be implemented from low speeds, adding to the quality of the drive feel.
The unit also benefits from a new dynamic damper structure to help reduce torque fluctuations to the drive shaft. Both the torque converter and damper structure have been revised to reduce size and save weight.
The compact and lightweight gear train provides both efficiency and durability. Close gear ratios are used at higher vehicle speeds with consistent, small changes in engine rpm when shifting in the high range to produce a rhythmic feel. The first gear ratio has been lowered to improve start-off acceleration and off-road performance, while eighth gear has an increased ratio for quieter high-speed cruising at lower engine revs, with enhanced fuel economy.
Shifting response is enhanced by 25% with the adoption of a new linear solenoid that is 29% lighter than the previous unit, compared to the current six-speed automatic. Quieter performance and fuel economy are supported by a smaller-diameter oil pump.
The torque converter features a multi-plate lock-up clutch with an expanded range, contributing to the direct drive feel and overall fuel economy. Lock-up control can be implemented from low speeds, adding to the quality of the drive feel.
The unit also benefits from a new dynamic damper structure to help reduce torque fluctuations to the drive shaft. Both the torque converter and damper structure have been revised to reduce size and save weight.
The compact and lightweight gear train provides both efficiency and durability. Close gear ratios are used at higher vehicle speeds with consistent, small changes in engine rpm when shifting in the high range to produce a rhythmic feel. The first gear ratio has been lowered to improve start-off acceleration and off-road performance, while eighth gear has an increased ratio for quieter high-speed cruising at lower engine revs, with enhanced fuel economy.
Shifting response is enhanced by 25% with the adoption of a new linear solenoid that is 29% lighter than the previous unit, compared to the current six-speed automatic. Quieter performance and fuel economy are supported by a smaller-diameter oil pump.
Toyota will introduce a mild hybrid version of the Land Cruiser in Europe, expected in late 2025, combining the 2.8-litre diesel engine with a 48V electric motor-generator, a compact 48V lithium-ion battery and a stop-start system. This will enhance the drivability, giving a smoother and quieter, yet more responsive performance while maintaining its ability to withstand tough driving conditions.
The driveline for the Land Cruiser’s permanent all-wheel drive features a revised propeller shaft structure designed for durability and quieter performance. Changes have also been made to the differentials: the centre unit has been revised for enhanced performance and fuel efficiency; the electronic locking rear diff (standard on both VX and VX-L grades) has been strengthened for added reliability. Both are turned to achieve the best balance of off-road traction and on-road stability.
The differential locking system has been changed from a motor to a solenoid type, giving 85% quicker response (around 0.15 sec) should the vehicle become stranded.
The transfer unit has also been updated for improved durability, an increase in actuator motor torque and anti-corrosion performance. A new toggle switch for selecting the H4 or L4 ranges and new diff lock switches are located on the centre console, next to the shift lever.
The differential locking system has been changed from a motor to a solenoid type, giving 85% quicker response (around 0.15 sec) should the vehicle become stranded.
The transfer unit has also been updated for improved durability, an increase in actuator motor torque and anti-corrosion performance. A new toggle switch for selecting the H4 or L4 ranges and new diff lock switches are located on the centre console, next to the shift lever.
[
] [
]
[
]
[
]
] []
[]
[]
